1.Material: SS 302,304,304L,316,316L
2.Wire dia: 0.5mm---1.2mm
3.Mesh size: 10x10mesh, 11x11mesh, 12x12mesh, 14x14mesh
4.Width: 0.5m--1.5m Length：2.4m, 2.6m or 0.5-34.5m
5.Weaving: plain weaving

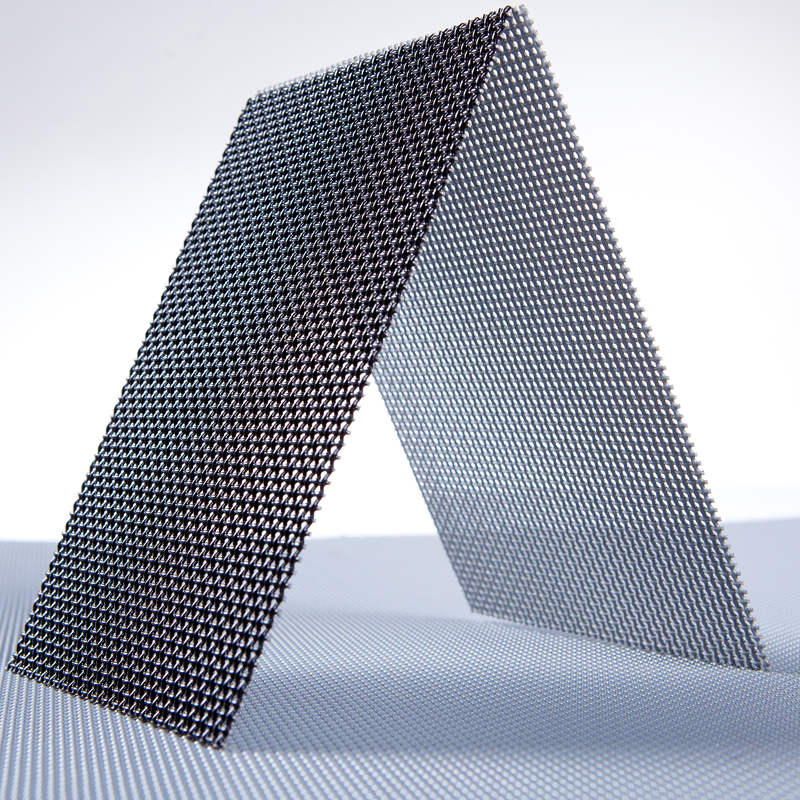

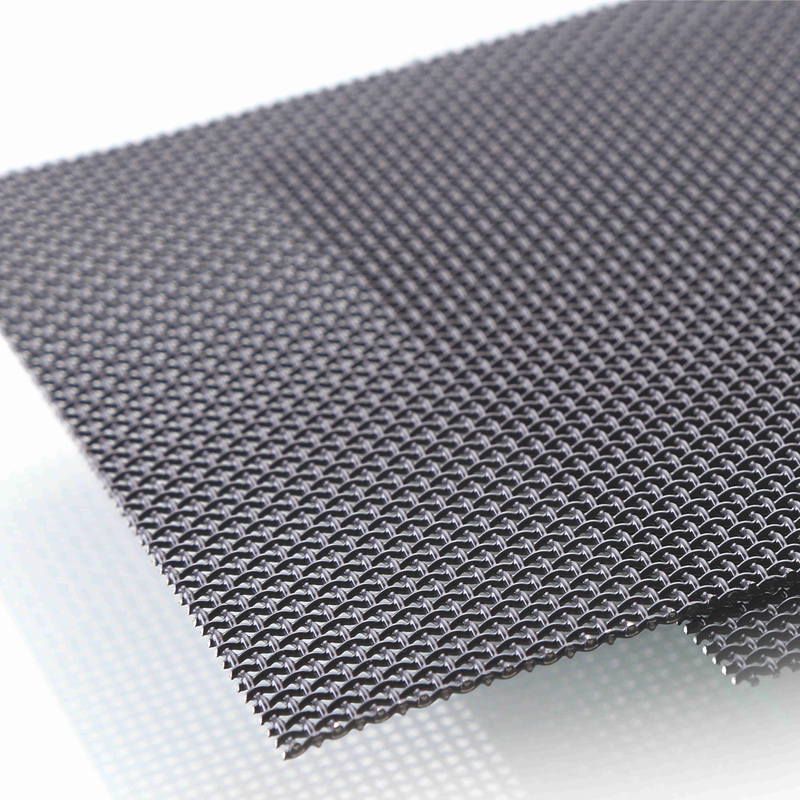

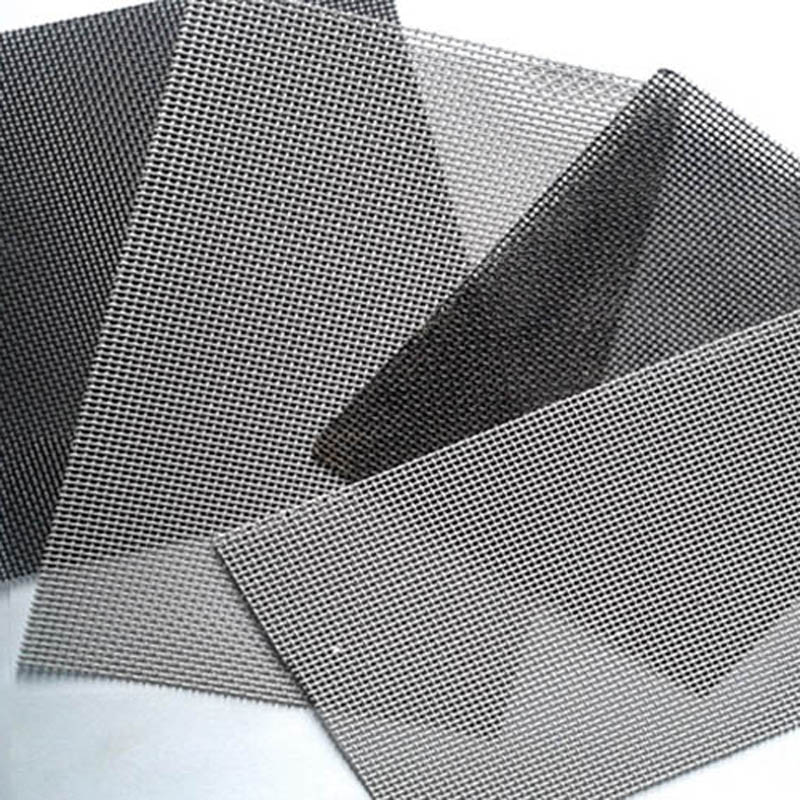

Security Insect Screen
1.Material: SS 304,304L,316,316L
2.Wire dia: 0.5mm---1.2mm
3.Mesh size: 10x10mesh, 11x11mesh, 12x12mesh, 14x14mesh
4.Width: 0.5m--1.5m Length：2.4m, 2.6m or 0.5-34.5m
5.Weaving: plain weaving
6. Popular size:
| Material | Wire Dia. | Mesh Size | Width |
| 304 and 316 | 1.0mm | 10x10mesh | 0.5-1.6m |
| 304 and 316 | 0.9mm | 11x11mesh | 0.5-1.6m |
| 304 and 316 | 0.8mm | 11x11mesh | 0.5-1.6m |
| 304 and 316 | 0.7mm | 12x12mesh | 0.5-1.6m |
| 304 and 316 | 0.6mm | 14x14mesh | 0.5-1.6m |
| 304 and 316 | 0.5mm | 14x14mesh | 0.5-1.6m |
| 304 and 316 |
0.4mm | 16x16mesh | 0.5-1.6m |
7. Characteristic:
l Woven by high tensile stainless steel wire, each wire is individually tested to international standards.
l Using the world best German looms which is the guaranty of the accurate apertures and beautiful surface of the fabric.
l Using the AKZO NOBEL POWDER coating ,long life service than common powder

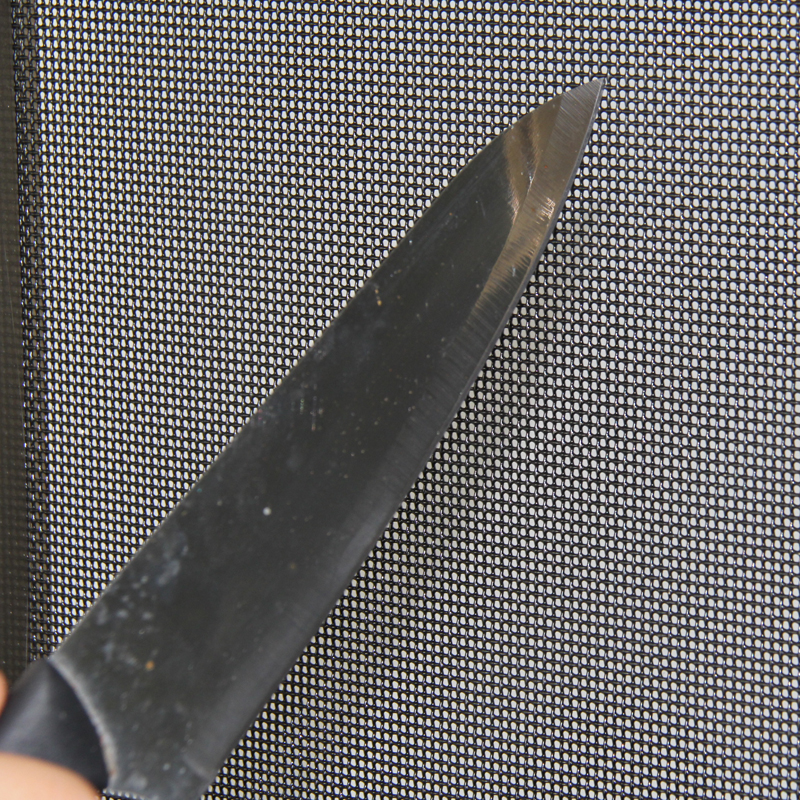

l Passes and exceeds knife shear testing ,strength superior to ordinary insect screen mesh
l Passes and exceeds salt spray testing ,proven durability to resist coastal environments for residential and commercial applications

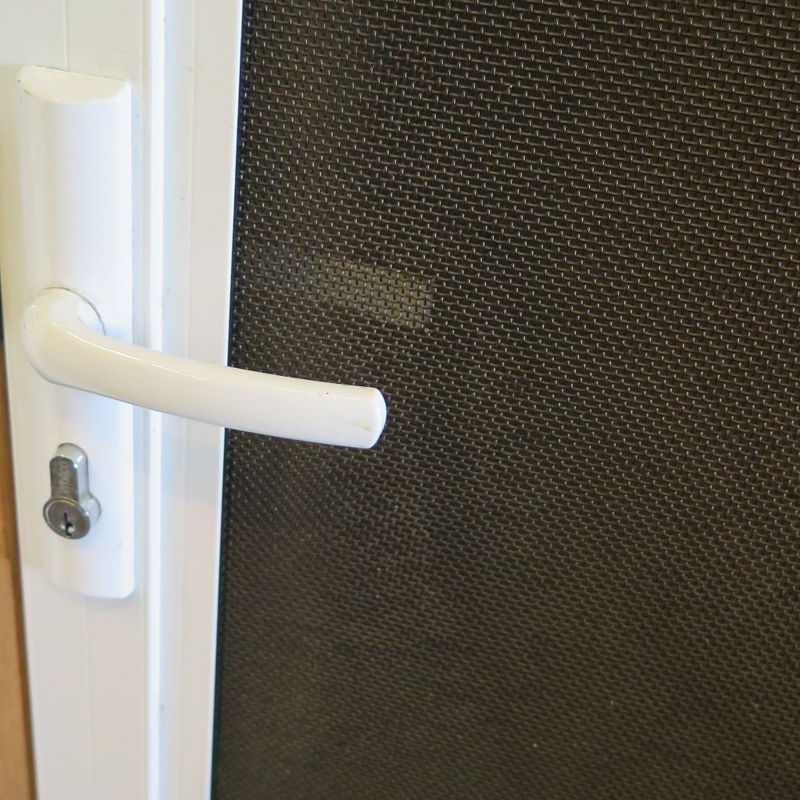

l Customized product for security screen door and window fabricators.
